POE Injector

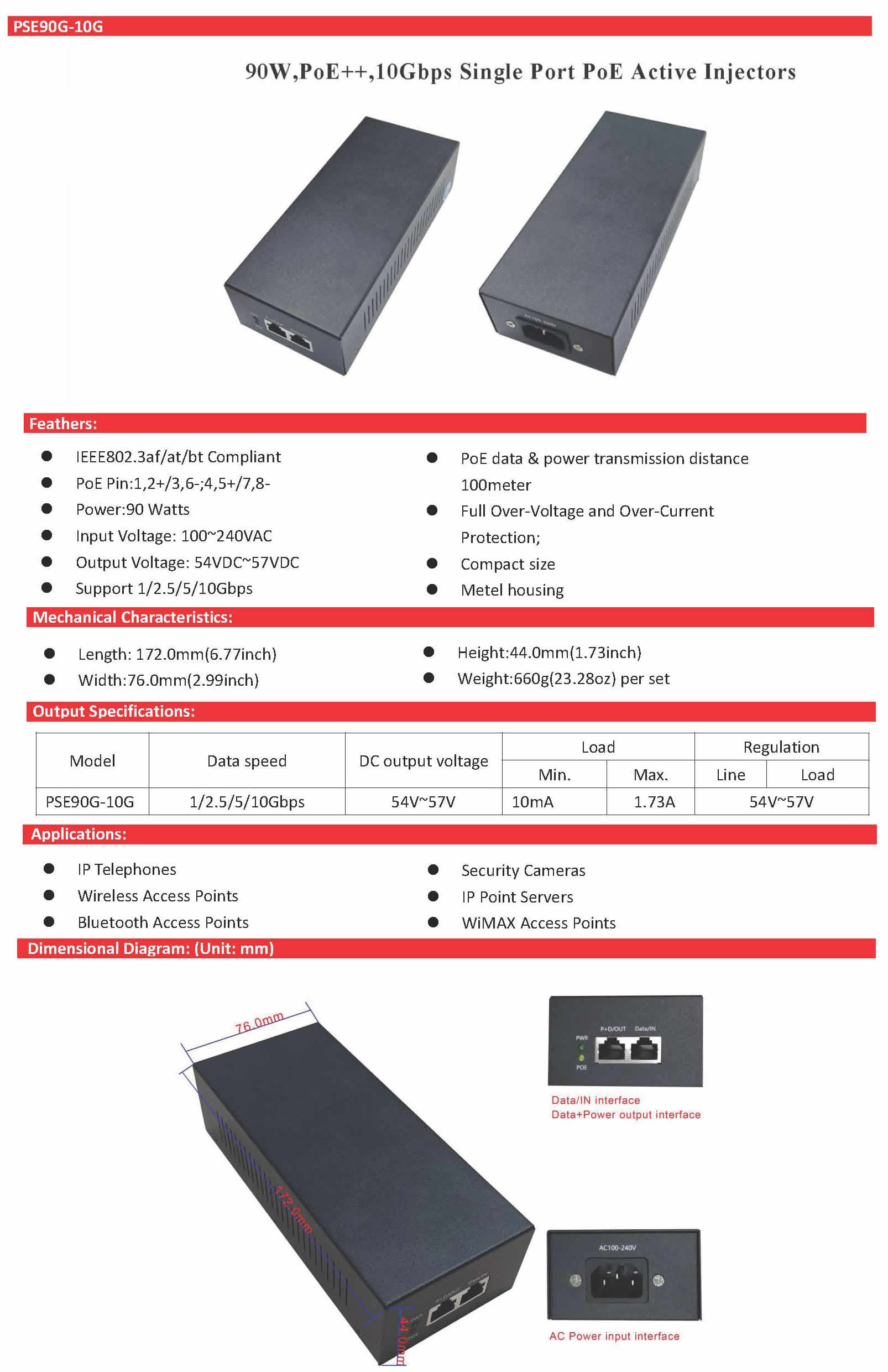

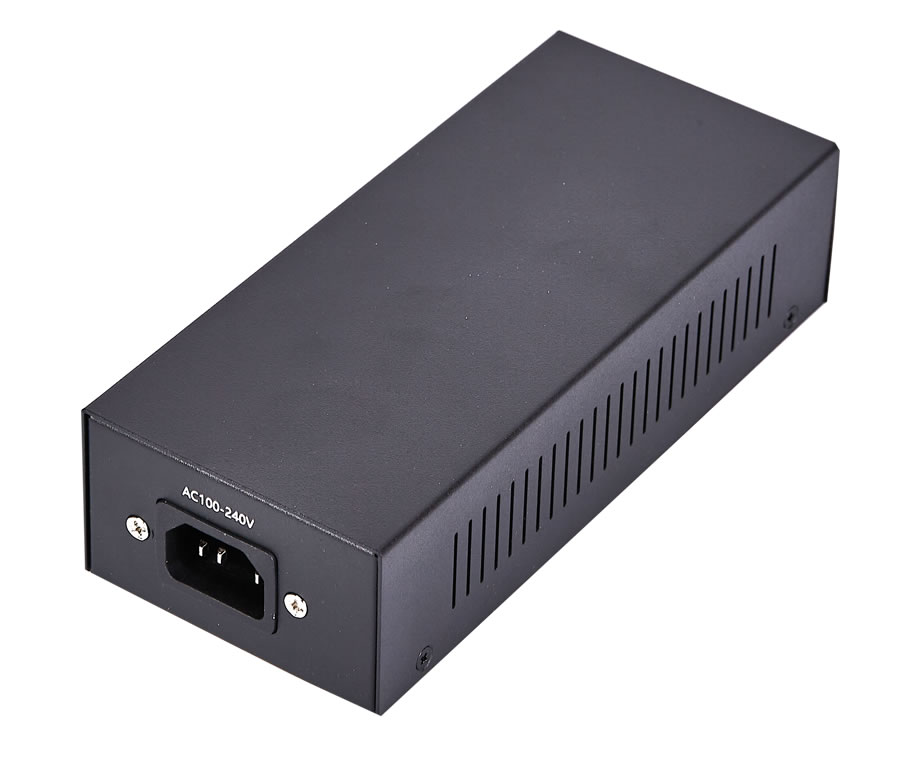

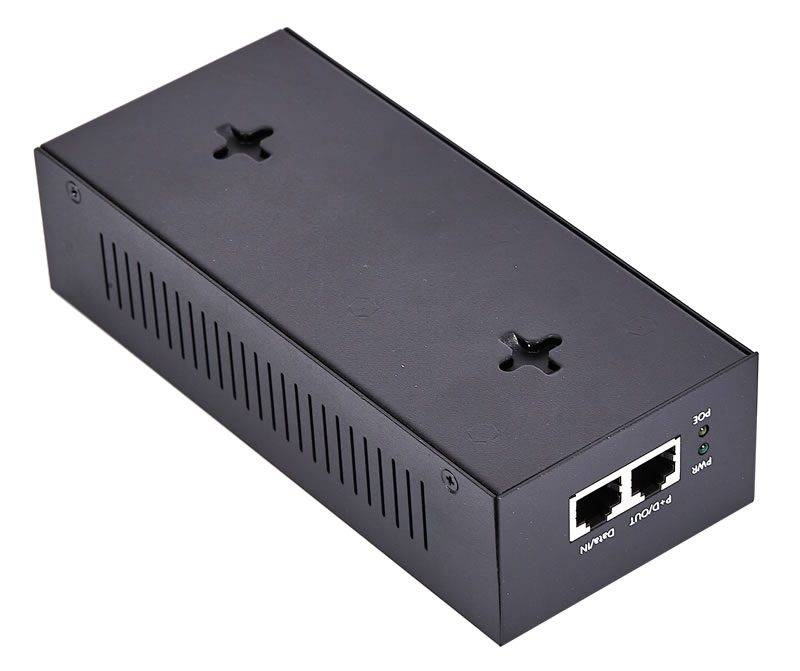

PSE90BT-10G PoE++ 10Gbps Single Port 90W PoE Active Injectors

Get A Quote
Contact Us

Feathers


l IEEE802.3af/at/bt Compliant

l PoE Pin:1,2+/3,6-;4,5+/7,8-

l Power:90 Watts

l Input Voltage: 100~240VAC

l Output Voltage: 54VDC~57VDC

l Support 1/2.5/5/10Gbps

l PoE data & power transmission distance 100meter

l Full Over-Voltage and Over-Current Protection;

l Compact size

l Metel housing


Mechanical Characteristics

- Length : 172.0mm(6.77inch)

- Width : 76.0mm(2.99inch)

- Height : 44.0mm(1.73inch)

- Weight : 660g(23.28oz)


Output

Model

Data speed

DC output voltage

Load

Regulation

Min.

Max.

Line

Load

PSE90G-10G

1/2.5/5/10Gbps

54V~57V

10mA

1.73A

54V~57V


Applications


- IP Telephones

- Wireless Access Points

- Bluetooth Access Points

- Security Cameras

- IP Point Servers

- WiMAX Access Points
