POE Injector

PSE30WG-B Gigabit 30W PoE Injectors

Get A Quote
Contact Us

1) IEEE802.3af/at Standard
2) PoE Pin:1,2+/3,6-
3) Power:30 WattsMaximum
4) Input Power AC Input Voltage: 100~240VAC
5) PoE data & power transmission distance 100meter
6) Weight:300g
7) Size:30*44*138mm Mini size POE injector
8) Support 1G/2.5G one port

Feathers

- IEEE802.3af/at Compliant

- PoE Pin:1,2+/3,6- (Mode A)

- Power:30 Watts Maximum

- Input Voltage: 100~240VAC

- Output Voltage: 54VDC

- Support 1Gbps/2.5Gbps

- PoE data & power transmission distance 100meter

- Full Over-Voltage and Over-Current Protection;

- Compact size

- 1-Year warranty


Mechanical Characteristics

- Length: 140.5mm(5.53inch)

- Width:45.5mm(1.79inch)

- Height:30.5mm(1.20inch)

- Weight:137g(4.83oz)


Output

Model

Data speed

DC output voltage

Load

Regulation

Min.

Max.

Line

Load

PSE30WG-B

1Gbps/2.5gbps

54V

10mA

600mA

54V~57V


Applications


- IP Telephones

- Wireless Access Points

- Bluetooth Access Points

- Security Cameras

- IP Point Servers

- WiMAX Access Points

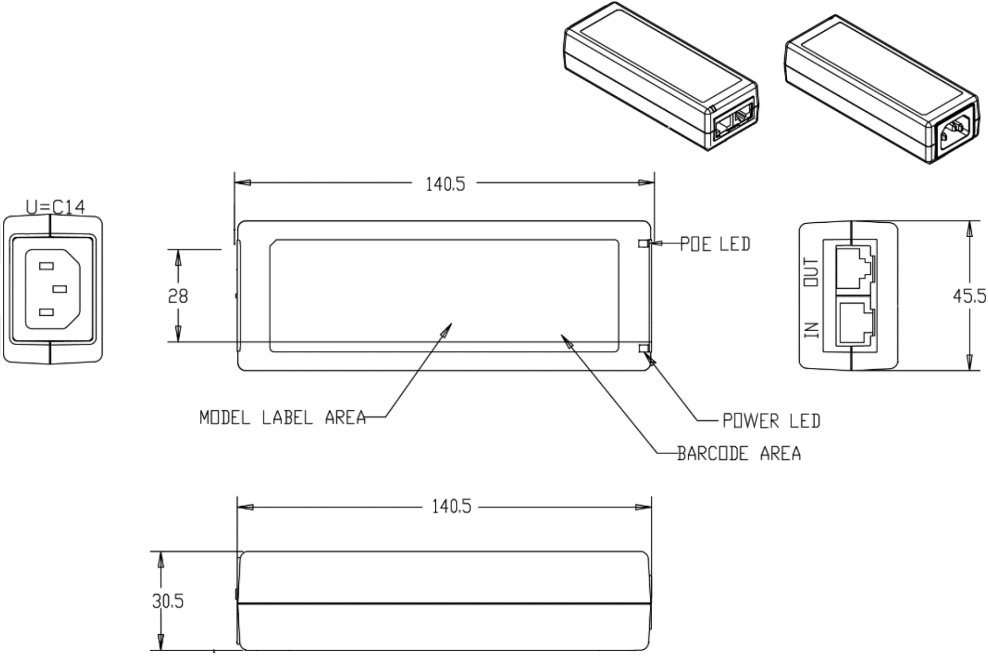

Dimensional Diagram: (Unit: mm)
