Advanced PoE Solution

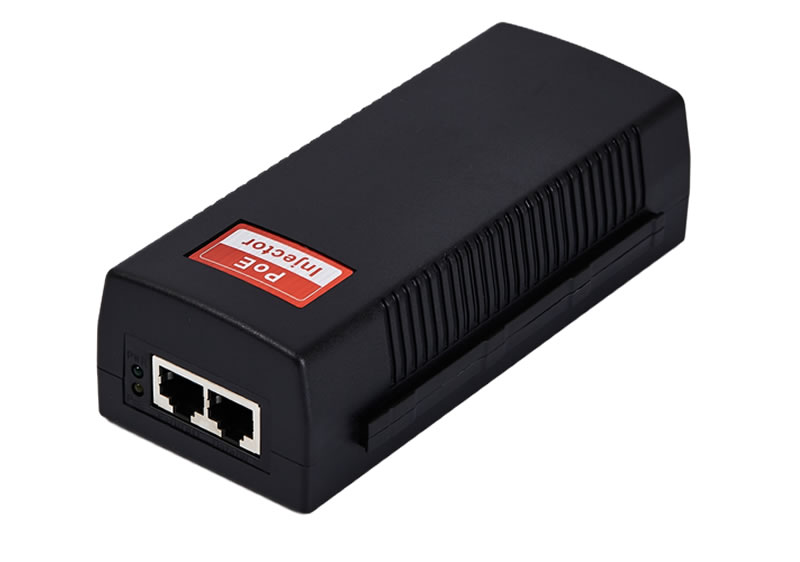

The PSE802G is a single port, highpower PoE PSE solution for remote PoE PD devices. Generating up to 30W PSE802G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backwards to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in PSE802G, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.
Key Features
-Up to 30W of PoE Power
-IEEE 802.3at Compliant
-Compatible with IEEE 802.3af or Legacy PoE applications
-Safe on Low Power Devices Receive Only the Power They Need
-Safe and Reliable Power to WLAN Access Points
-Automatic Detection and Protection of Non–standard Ethernet Terminals
-Supports 10/100/1000Base-T LAN environnent and 2.5G

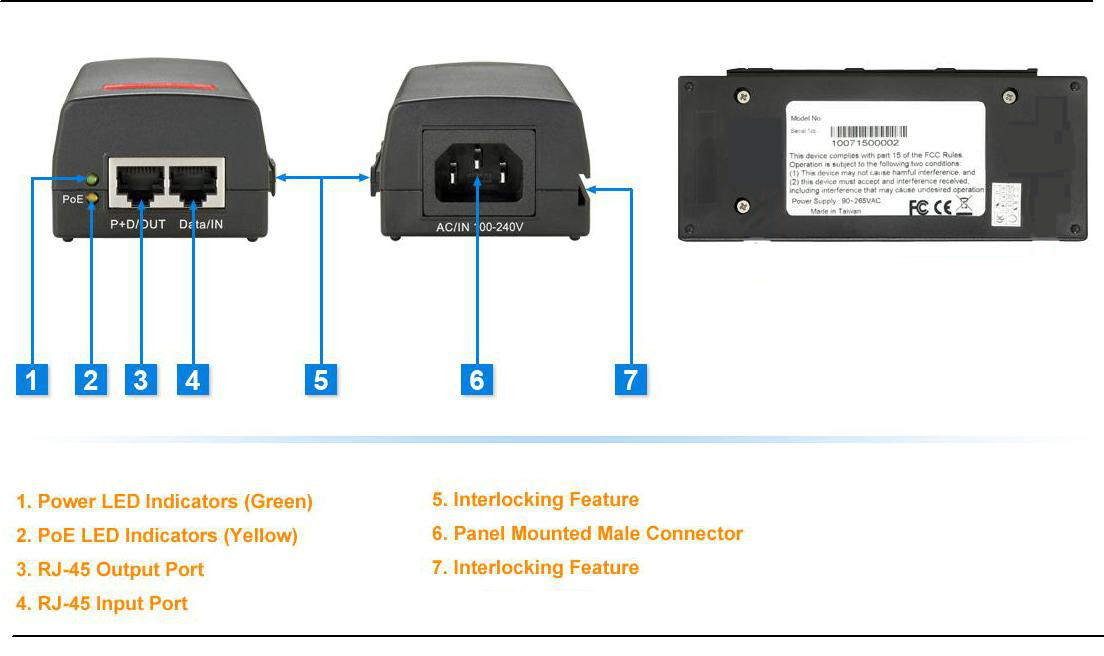

-Unique interlocking feature for easy installation
Works Well With: PS5712P / PS5712AT

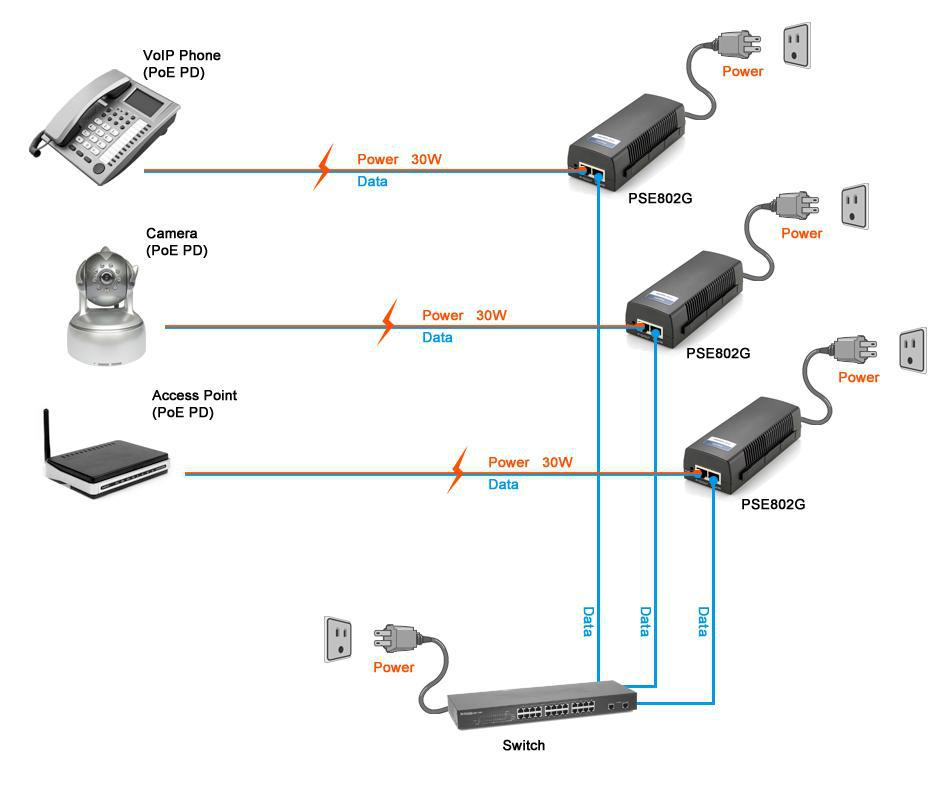

Product Diagram
