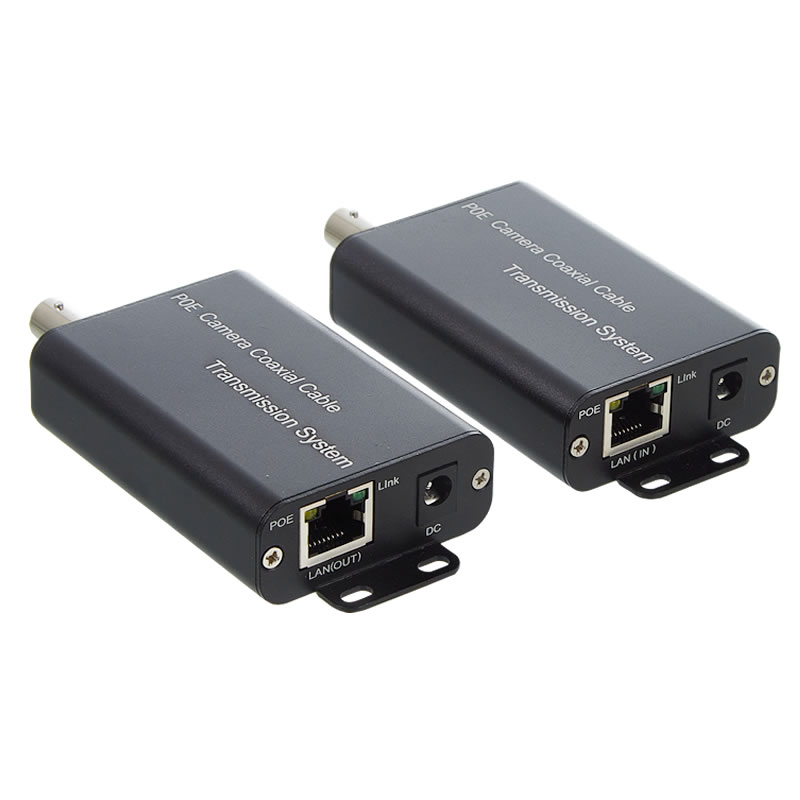

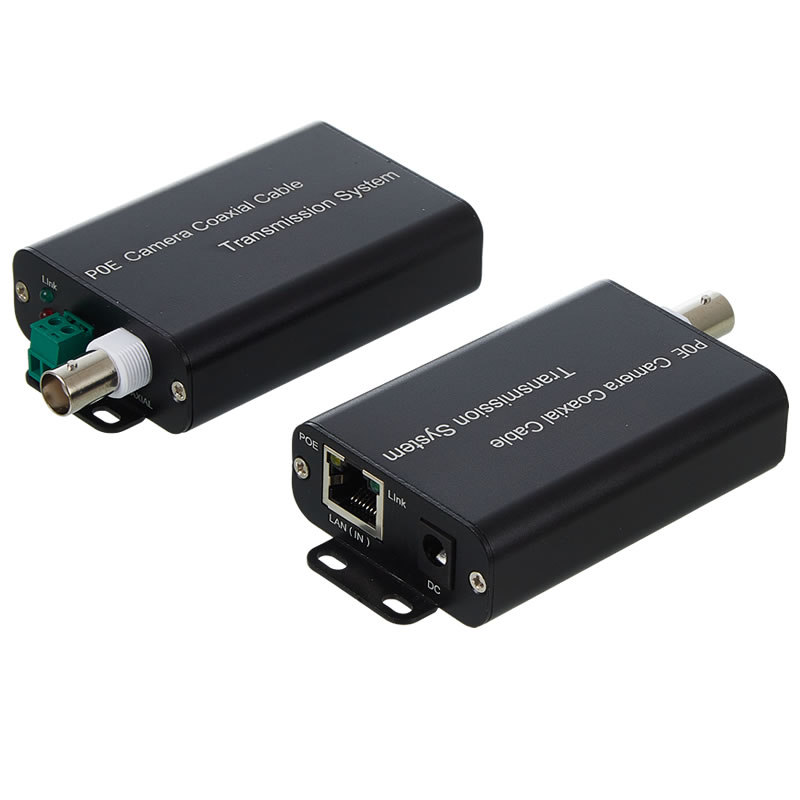

POE Extender for Video Surveillance Systems (Network Camera Transmission over Coaxial Cable) EOC HL-902M-POE

source

import

DC44-57V ± 10% / 1A (or greater than 1A）

The power of the machine

≤2W

export

PSE output, compatible with af and at standards

transfer

Transmission media

Network cable, twisted pair, coaxial

 haul up

Maximum 500 meters

tape width

Maximum 94Mbps (10Mbps above 500 m coaxis).

Group broadcast

The IGMP multicast protocol is supported

 Ethernet

The 100Mbps standard, compatible with 10Mbps.

Connector

Power port (DC _ IN)

2.1-5.5mm Round mouth DC seat

Ethernet network (data)

RJ 45 (1,2 and 3,6)

Transfer port

BNC seat or 2X3.81mm phoenix terminal

Pilot lamp

Power

Power supply indicator light, always on after normal power supply

Link

The previous connection indicator of the two transmissions is the light, and the connection is always on

The RJ 45 Yellow POE

Ethernet access to the POE devices and open the POE is often bright

RJ 45 Green E_Link

Ethernet communication indicator, bright when connection is successful and flashing during communication

Surface

Dimensions (without interface size)

Color

 black

Net weight (about)

Environmental requirements

Working temperature

-10℃~70℃

Humidity

0-95%

storage temperature

-40℃~85℃
