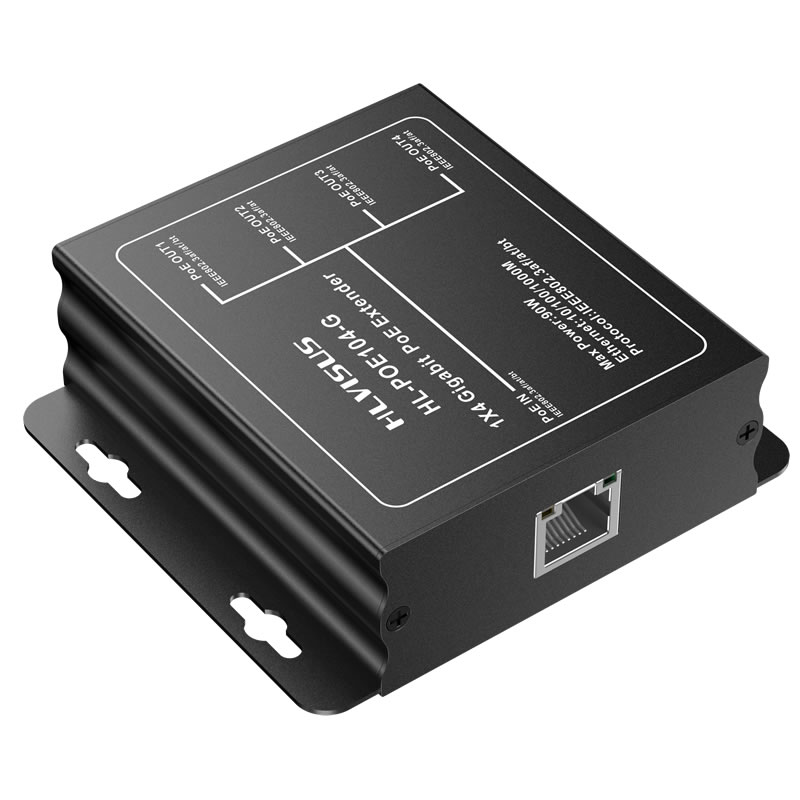

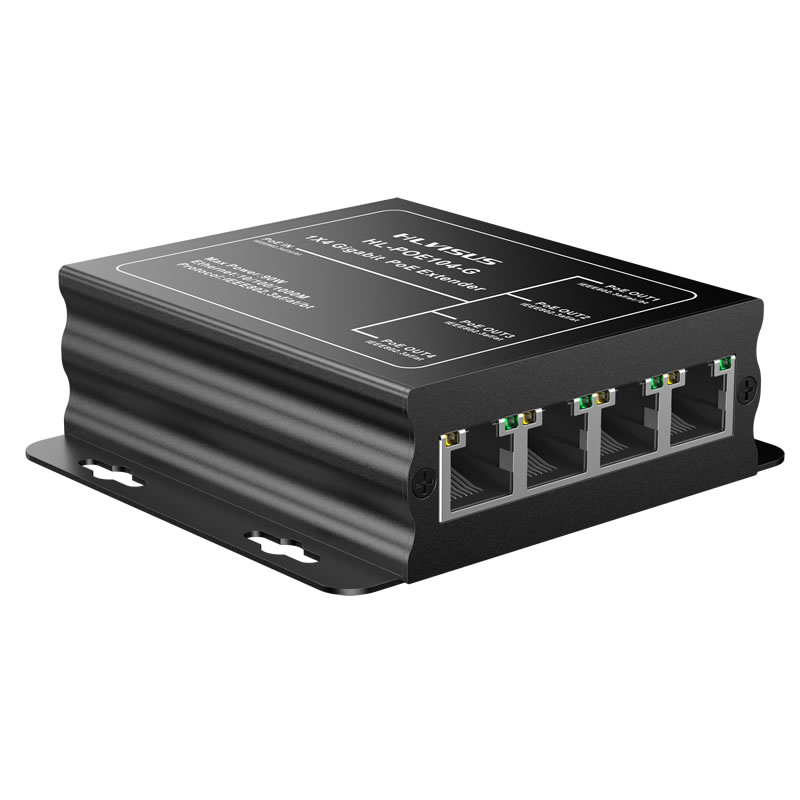

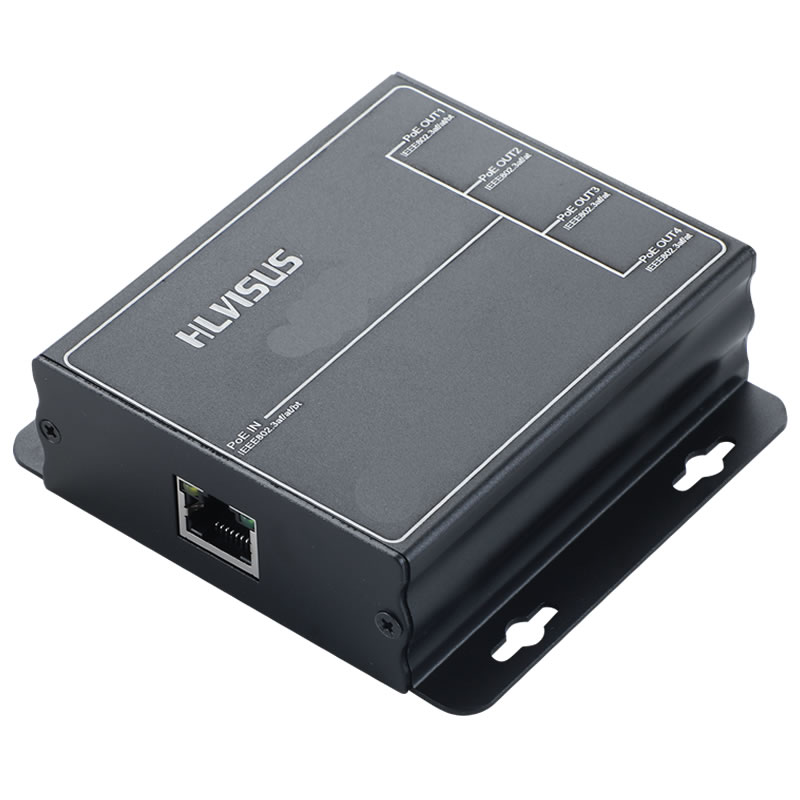

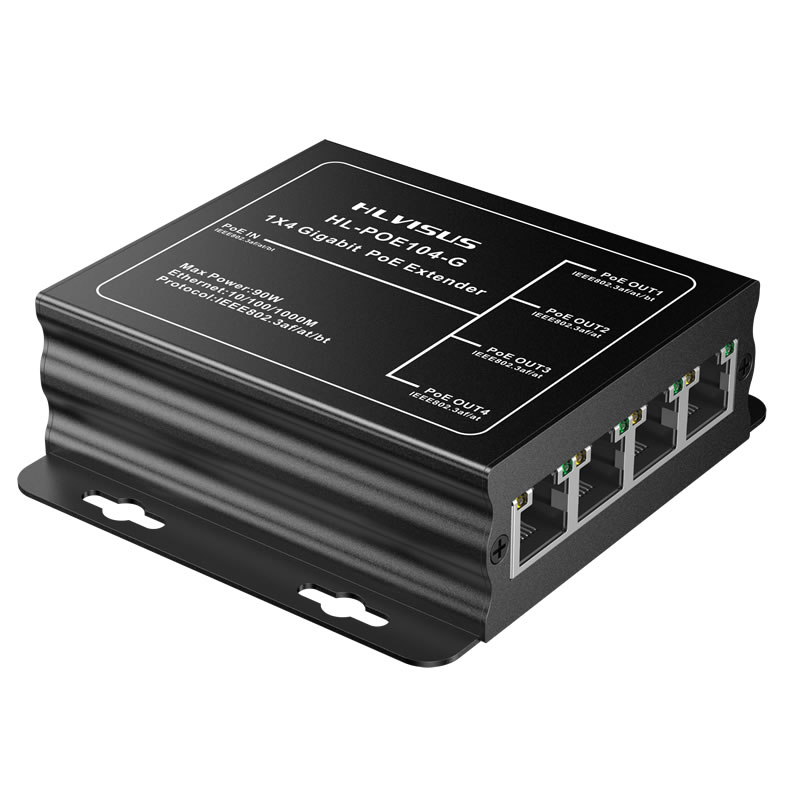

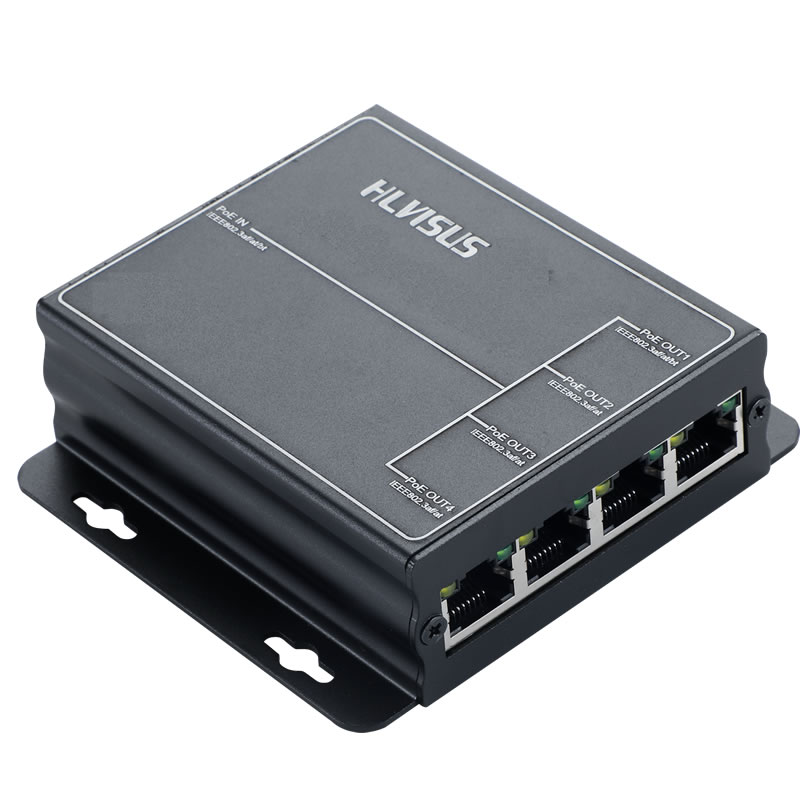

Poe++ 4 Port POE Extender Repeater 1 IN 4 OUT 48V/90W 1000Mbps 200meter HL-POE104-G/HL-EPOE104-G

 Model

 HL-EPOE104-G

Product name

PoE extender/repeater

PoE port

IEEE802.3af/at /bt Standard POE power supply

Network interface

1*10/1000Base-TXattached PD receiving port 4*10/1000Base-TX POE port

Forward mode

store-and-forward

MAC address list

2K

Exchange capacity

10Gbps

POE port input power

90W(max)

POE port output power

OUT1:60W(max),OUT2-OUT4:25.5W(max)1-4 ports intelligently assigned

Transmission speed

1000Mbps

Power pin

1/2(+),3/6(-) or 4/5(+),7/8(-), input and output ports support 4-pole/8-pole power supply

Pilot lamp

Power indicator: yellow (PWR);POE working indicator: green

Lightning protection grade

2Kv 8/20us

Working temperature

-10°C~60°C

Overall dimensions

9*9.7*2.9cm

Appearance material

aluminium

Product weight

0.21KG
