Poe+ 3 Port POE Extender Repeater Outdoor waterproofing 1 IN 3 OUT 48V/30W 100Mbps 200meter HL-FSPOE103P/HL-EFSPOE103P

Model

HL-FSPOE103P/HL-EFSPOE103P

Product name

1 to 3 PoE extender

POE port

IEEE802.3af/at standard POE power supply

Network Interface

100/100Base-TX uplink PD receive port, 2*10/100Base-TXPOE ports

Forwarding Mode

Store and Forward

MAC address table

1K

Switching capacity

0.6Gbps

POE port input power

30W(MAX)

POE port output power

 30W (max), 1-2 ports intelligently assigned

Transmission rate

100Mbps

Output power pins

 1/2 (+), 3/6 (-)

Indicators Yellow

 POE power indicator; Green: network signal indicator

Operating Temperature

-10°C~60°C

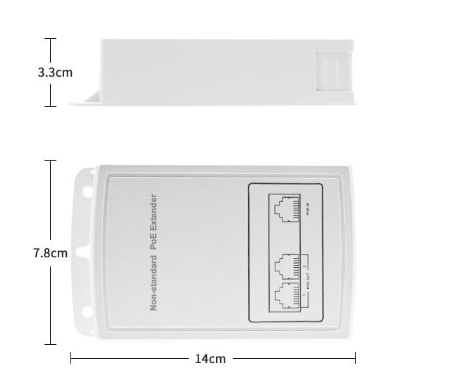

Overall Dimension

14*7.8*3.3cm

Material

ABS

Product Weight

 0.2KG
