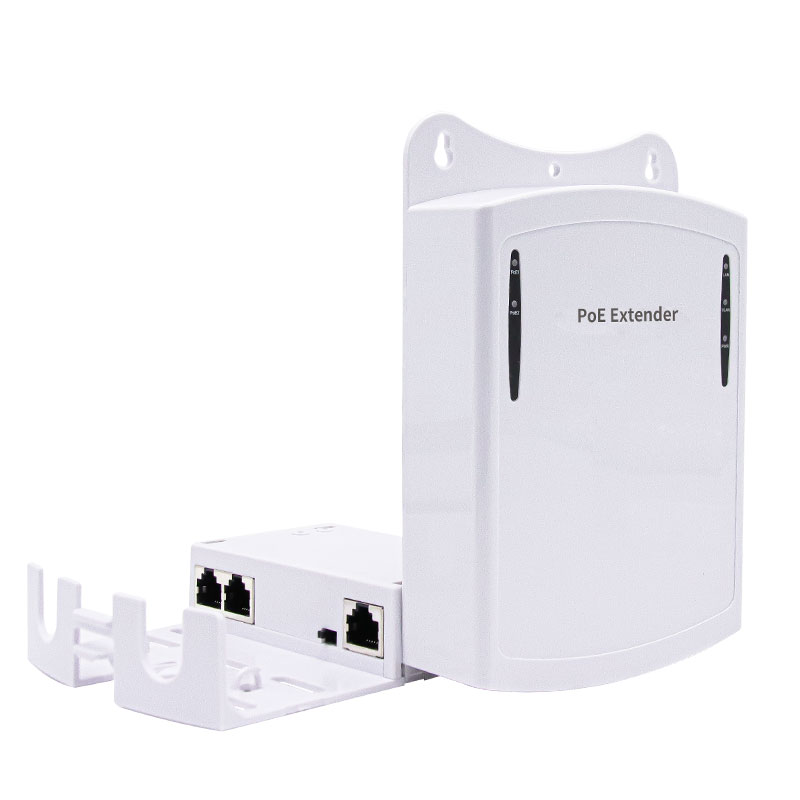

Poe+ 2 Port Outdoor waterproof IP65 POE Extender Repeater 1 IN 2 OUT 48V/30W 100Mbps 200meter HL-FSPOE102/HL-EFSPOE102

Model

HL-FSPOE102

Product name

PoE extender/repeater

PoE port

IEEE802.3af/at Standard POE power supply

Network interface

1*10/100Base-TX attached PDreceiving port

 2*10/100Base-TX POE port

Forward mode

store-and-forward

MAC address list

1K

Exchange capacity

0.8Gbps

POE port input power

30W max

POE port output power

25.5W (max), 1-2 portsintelligently assigned

Transmission speed

100Mbps

Power pin

1/2(+),3/6(-)or 4/5(+),7/8(-),input and output

ports support 4-pole/8-pole power supply

Pilot lamp

Power indicator: yellow (PWR);POE working indicator: green

Lightning protection grade

2kv 8/20us

Working temperature

-10°C~60°C

Overall dimensions

13.7*8.7*3.3cm

Product weight

0.2KG
