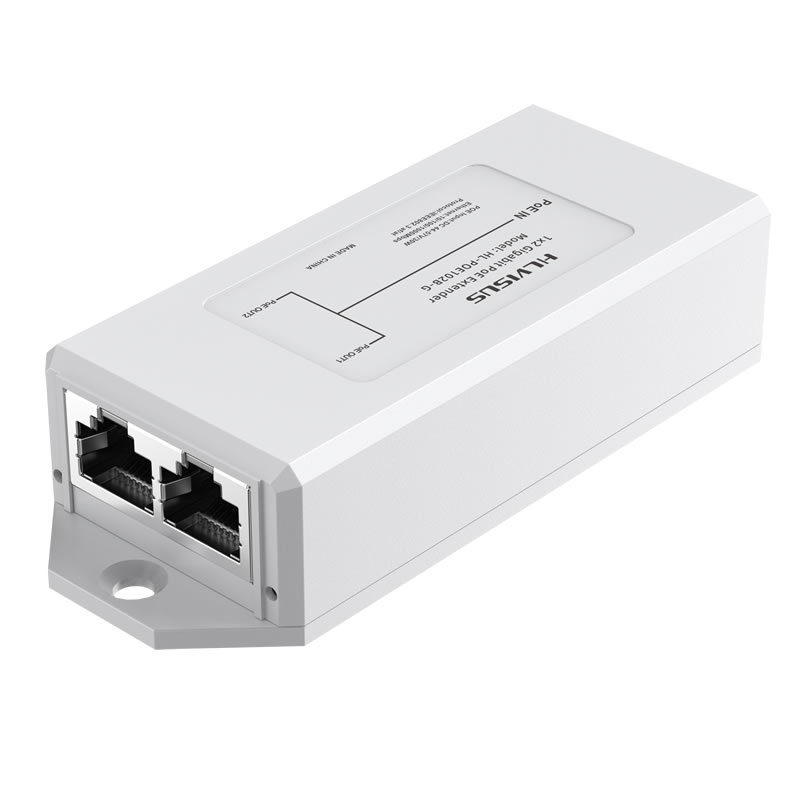

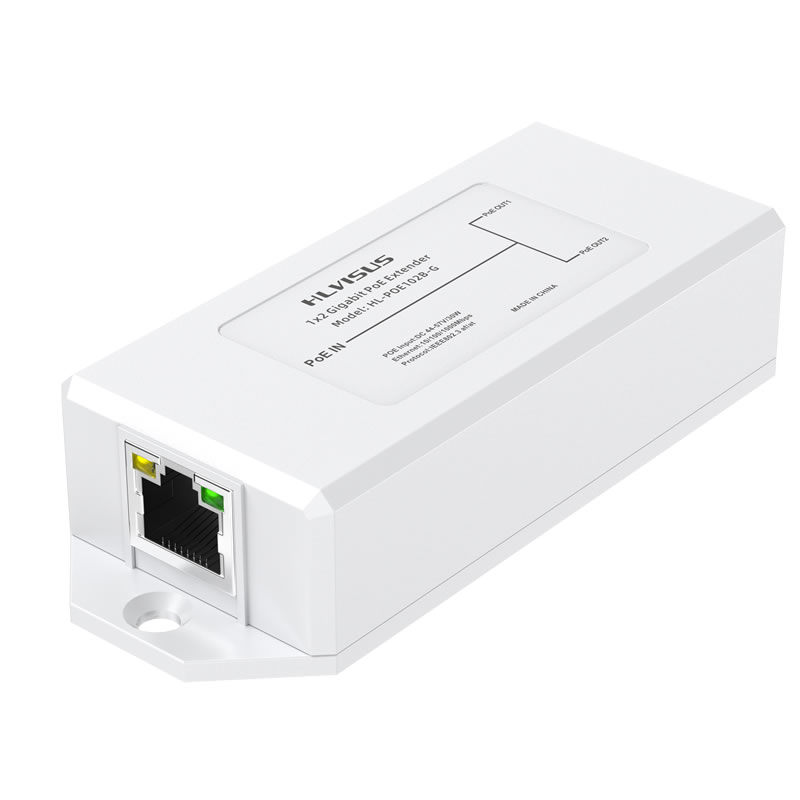

Poe+ 2 Port Gigabit POE Extender Repeater 1 IN 2 OUT 48V/30W 1000Mbps 200meter HL-POE102B-G/HL-EPOE102B-G

Model

HL-EPOE102B-G/HL-POE102B-G

 Product name

PoE extender

 PoE port

 EEE802.3af/at Standard POE power supply

Network interface

1*10/1000Base-TXattached PD receiving port 2*10/1000Base-TX POE port

Forward mode

store-and-forward

MAC Address Table

 1K

 Exchange capacity

0.8Gbps

 POE port output power

 30W max

 POE port output power

25.5W(max),1-3 ports intelligently assigned

 Transmission speed

 1000Mbps

 Power pin

 1/2(+),3/6(-)or 4/5(+),7/8(-),input and output ports support 4-pole/8-pole power supply

 Pilot lamp

 Power indicator: yellow(PWR):POE working indicator green

 Lightning protection grade

 2Kv 8/20us

 Working temperature

 -10°C~60°C

 Overall dimensions

 7.9*7.0*2.4cm

Product weight

 0.15KG
