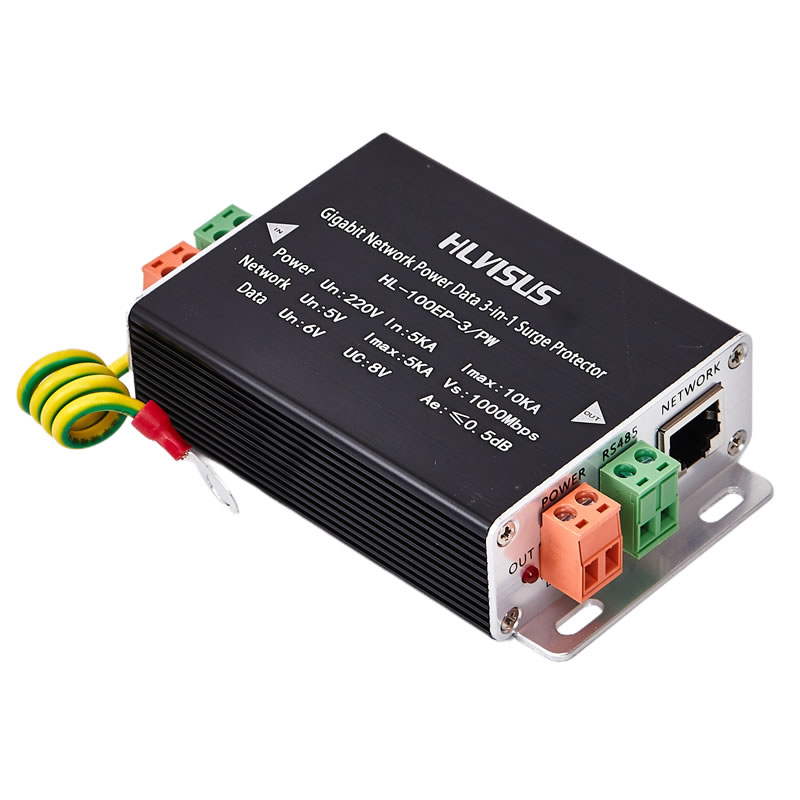

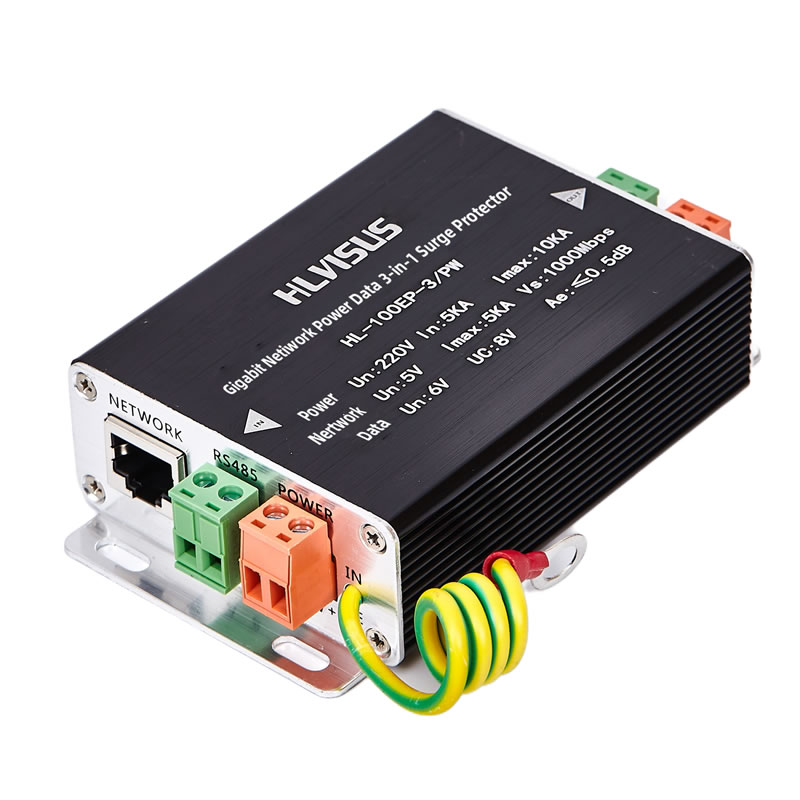

2-in-1 Network Surge Protector

Monitoring Metal Network Power Data Control 3 in 1 SPD Network Lightning Arrester Surge Protector for CCTV System HL-100EP-3/PW

Get A Quote
Contact Us

Model

HL-100EP-3/PW

Function

Network / Power Supply / 485 Signal

SPD Port/Category

Two-port / Combined Type

Power surge protection characteristics

Rated Voltage  Un

220V AC

Maximum Current Imax (Continuous Operating Voltage Uc

275V AC

Protection Level Up (8/20μs)

1150V

Rated load current IL

2A

Response time

≦25ns

Rated discharge current In (8/20 μs)

5kA

Imax (Discharge Current Imax (8/20 μs)

10kA

Network signal surge protection characteristics

485 signal nominal discharge current In (8/20 μs)

5KA

Imax (continuous operating voltage Uc

8V

Protection level Upx-x (1.2/50 μs)

150V

Rated discharge current  In (8/20 μs)

1.5KA

Rated discharge current  Imax (8/20 μs)

3KA

Transmission characteristics

100Mbps

Response time

≦1ns

Insertion loss

<0.5dB

Size

110*65*28(mm)
