48V TO 5V

HL-PD0502 48V TO 5V2.4A Ethernet Industrial PoE+ Splitter Power 802.3aF 12W Wide Temperature MICRO USB/TYPE C

Get A Quote
Contact Us

*The Main Board of this PoE Splitter is 5V 2.4A Output.
*Data Transfer Rate is 10/100Mbps.
*4 Interface Connection Methods for You to Choose :
DC Jack 5.5*2.1mm (PD0502-DC55*21)
DC Jack 5.5*2.5mm (PD0502-25 DC55*25)
Type-C Jack (PD0502)
Micro-USB Jack (PD0502)

Features

· Support international standard IEEE802.3 af(12.5W);

· POE port Support 10/100Mdata transmission

· PD support 37V-57V voltage transmission,Automatically detects power supply from PSE power supply module

· 5V/2.4A power output using TYPEC ,the TYPEC port only for power-charging.

· Support the isolation circuit protection,can effectively protect electrical equipment.

· Support the short circuit,overvoltage protection

· 1500V high voltage isolation

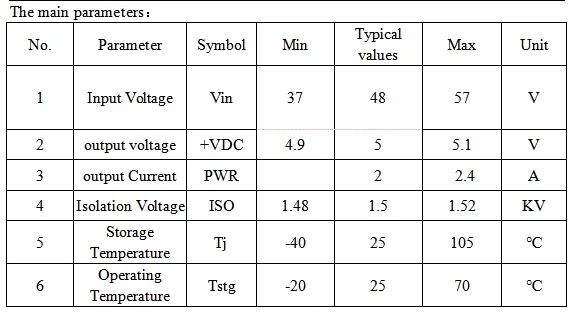

Technical Parameters

Model

HL-PD0502

Transfer Rate

10/100MBPS

Power

Input 48V DC /0.35A, Output 5V/2.4A

Standard

IEEE802.3 af(12.5W)

TRNF

1/2(+),3/6(-);4/5(+),7/8(-)

Interface Type

1 Input RJ45 port, 1 output RJ45 port, 1 DC output(TYPEC)



Standard

IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af

LED

Yellow PoE lamp

Environment

Work within -20~50°,Storage within -30~60°

Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing

Dimension

68L * 25W *25H

Weight

0.05kg

2019 Dapo 1500V high voltage isolation TYPE-C 5V2.4A 1500V high voltage isolation IEEE802.3af poe splitter
